2 channel 4 inputs (high & low) |
|
High treble & normal channels |
|
2 Volume, Treble, Mid, Bass and presence |
|
2 Matched KT66 power tubes (groove
tubes KT66-HP) |
|
3 JJ 12AX7 preamp tubes |
|
1 GZ34 rectifier tube |
Heyboer transformers (original radiospares
specs) (120/240 volt primary) |
| Output Tranny has correct 6.6 k primary |
| 4, 8 or 16 ohm selector |
| Two speaker outputs |
| Optional negative feedback control (27 to
77k) |
| Plexi panels |
| Original JTM 45™
Plexi specs |
| Correct filtering |
| Mallory caps allen bradley carbon comp
resistors |
| Aluminum chassis |
| Hand wired point to point (Teflon wire) |
| Baltic birch cabinet (black Levant Tolex)
|
|
Price:
$1,545
23"h x 32"w x 10-1/2"d
5 year limited warranty.
1 yr speakers 90 days tubes
2-12 combo Price:
$1,795
|
|

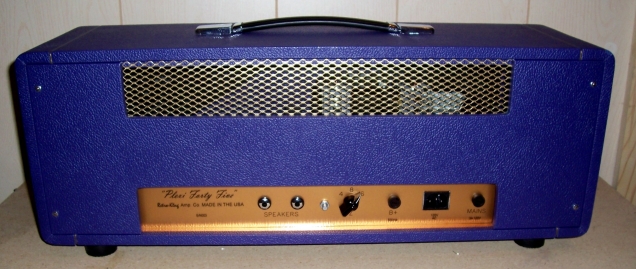

Shown in Purple Levant Tolex
(click on photos for
larger view) |
The "Plexi 45" is a replica of the
mid 60's JTM 45™.
Unlike the reissue, this amp is hand wired point to point on a vintage
style turret board and is built to the exact specs of the original ( I
do add a 100 pico cap across the normal volume for added clarity).
The output tranny built for me by heyboer with the 6.6k primary plate
load is optimal for the kt-66 power tubes. As in the originals, the
filtering in the first cap is a double 32mf cap and the second is a
double 16mf cap.
This amp uses the early "plexi" tone control values
along with the standard preamp values. You can also order this amp with
the optional negative feedback control adjustable from the stock 27k to
77k (mounted on back of amp). This will give you more or less
power amp gain.
Eric Clapton beano tone to AC/DC, its all here. |
