Custom Made
Hand Wired Amplifiers
When Quality and Tone is a Must
| |
"18 Watt Combo"
A class AB cathode biased amp |
|
|
(click on photos for
larger view)
|
|
2 channels 4 inputs (high & low) |
|
Normal channel volume & tone |
|
Trem channel volume, tone, speed & intensity |
|
2-Matched JJ EL84 power tubes |
|
3-JJ 12AX7 preamp tubes |
|
1-NOS EZ81 rectifier tube |
|
Heyboer transformers (original radiospares spec) (120/240 volt primary) |
|
4, 8 or 16 ohm selector |
|
Two speaker outputs |
|
Plexi panels |
|
Two speed Trem Pedal |
|
Allen Bradley carbon comp resistors |
|
dijon "mustard" caps |
|
Aluminum chassis |
|
Handwired point to point (Teflon wire) |
|
Baltic birch cabinet
|
|
Black Levant Tolex |
|
1-12 Price:
$1,695
20"h x 24"w x 9"d
5 year limited warranty.
1 yr speakers 90 days tubes
Head Version:
$1,595
2-10:
$1,750
2x12:
$1,795 |
|
 |
|
Your choice of:
|
Weber speakers:
Ceramic Blue Dog, Ceramic Silver Bell,
Ceramic 1230 (G12H30) or
Ceramic 1230-55
AlNiCo
Silver 10, Ceramic Silver 10,
AlNiCo Blue Pup 10, or
Ceramic Blue Pup 10 |
Celestion Speakers:
12" G12H30
12" Greenback
12" Vintage 30 |
|

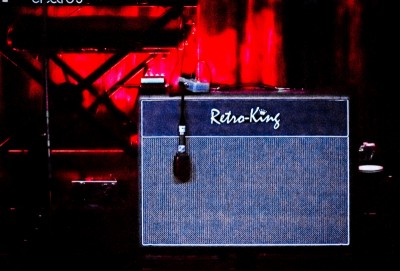

Custom 2x12 18 Watt Combo made for Billy Gibbons ..
more info |
|
|
|
OPTIONS: |
Optional
Tolex:
NOW FREE |
|
Optional Grill
Cloth:
NOW FREE |
|
Optional Knobs:
add $10.00 |
|
Mercury magnetics radio spares
output tranny 8 and 16 ohm taps:
add $175.00 |
|
Tube-diode
rectifier switch:
add $49.00 |
|
SOZO caps
upgrade:
add $35.00 |
|
Post PI master
volume:
add $50.00 |
|
Adjustable line
out:
add $50.00 |
|
|
Weber Speakers: |
|
12" AlNiCo Blue Dog:
add $100.00 ea |
|
12" AlNiCo Silver
Bell:
add $100.00 ea |
|
|
Celestion Speakers: |
|
Celestion Blue:
add $150.00 ea |
|
Celestion Gold:
add $200.00 ea |
|
Heritage Series G12M:
add $100.00 ea |
|
Heritage Series G12H:
add $100.00 ea |
|
| Other makes and
models of speakers available by request. |
|
|
| |
A replica of the hard to find, 1966 Marshall™ 18 watt lead combo
amplifier with two channels (4 inputs) with a tremolo unit operating
on channel two. You can order this amp with an optional rectifier switch
it allows you to switch between the tube rectifier and a solid state
diode rectifier.
The 18 watt is for the player who needs vintage tone and reliability in
a amp that every sound
man will thank you for.
If you desire an amp
with great touch sensitivity, sweet even-order harmonics and outstanding
dynamic range in a combo or head this amp is for you. |
|
|
|
|
 |
 |
|

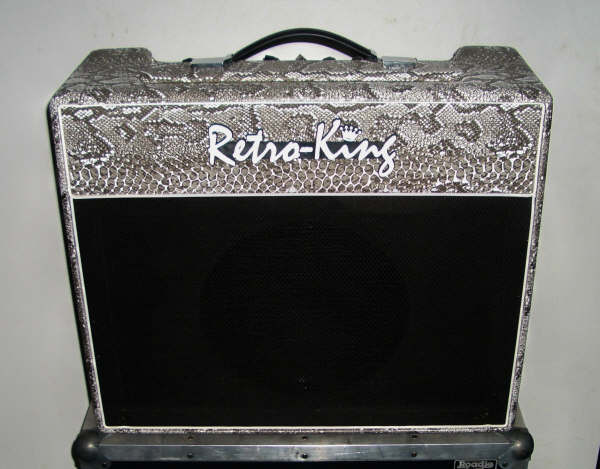

Shown with Snake Skin Tolex and Black
Grill Cloth
(click on photo for
larger view) |
Shown in Purple Levant Tolex
(click on photo for
larger view)
|
|
|
Hi Chuck, not that you need
anymore endorsements or testimonials but after 2 months with the 18
watt (1-12) combo you custom built for me, I must say it's an
addictive piece of gear! The more I play it, the more I want to play
it!! It amazing that such a simple design in an amp can provide the
tone it does. At lower volumes you get the chime and just a little bit
of grit but with clarity, articulation, and even balance across all
strings. But the fun really begins getting this up between 5 and 6 on
the Master Volume with the Volume dimmed. It still retains all the
aforementioned qualities but now it fills in with that Marshall (Old
Marshall amp that is) crunch, balls, and sustain. And at first I
thought the 18 watts may not be enough, but it is a loud 18 watts and
perfect for my particular needs. There is just something about this
18w design that sounds sweeter than any of the amps I have had, and
that covers about 40 years and who know's how many amps. Keep in mind
that in the past I have had numerous 18 watt combo's to include the
Marshall 1974x reissue, GDS, Reinhardt, BlockHead First Born, Bacino,
Ceriatone etc. etc. All are good amps but the Retro-King has the magic
dust. My gear acquisition syndrome has reached an end finally! That is
until I order one of your JTM45's. Keep up the great work and thanks
for building such a fine amp.
Best Regards,
Scott from Ohio
9/9/2010 |
